Upgrade your microscope workstation with a microscope camera of the JENOPTIK GRYPHAX® series
JENOPTIK GRYPHAX® 시리즈는 직관적인 현미경 카메라 소프트웨어가 포함된 최첨단 USB 3.0 현미경 카메라입니다.
JENOPTIK GRYPHAX® 시리즈는 직관적인 현미경 카메라 소프트웨어가 포함된 최첨단 USB 3.0 현미경 카메라입니다.
![JENOPTIK GRYPHAX® Series PROGRES GRYPHAX®-시리즈](/-/media/websiteimages/optics/di/progres-gryphax-cameras/jenoptik-gryphax-workstation-10.jpg?w=460&la=ko-KR&h=414&mw=460&bc=333333&hash=15606ABE1E802830247529B7A21B0FE5)
JENOPTIK GRYPHAX-시리즈는 최첨단 디지털 워크스테이션으로 귀하의 현미경을 개선해 줍니다. 시간을 절약하십시오!
JENOPTIK GRYPHAX® 현미경 카메라 소프트웨어가 각 카메라와 함께 공급됩니다. 이 특별한 사용자 친화적인 소프트웨어는 사전 지식이 필요없이 직관적으로 귀하의 컴퓨터 윈도, 맥, 또는 리눅스 운영 체제에 설치할 수 있습니다. 모든 카메라는 동영상 속도로 라이브 이미지 를 제공하므로 일상적인 업무에 쉽게 활용할 수 있습니다.
Jenoptik의 입증된 화질에 최첨단 CMOS 기술이 결합되어 있습니다.

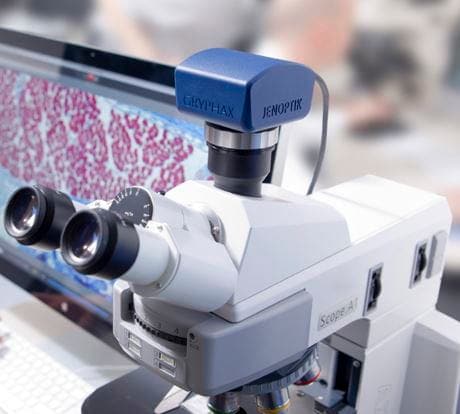

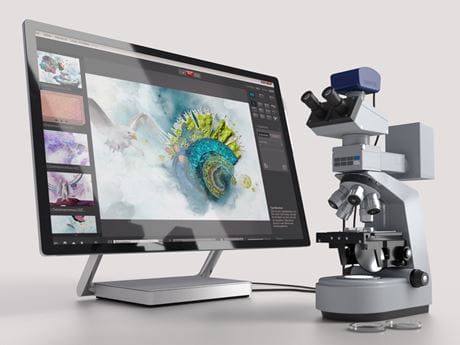

![PROGRES GRYPHAX® 현미경 카메라 워크스테이션](/-/media/websiteimages/optics/di/gryphax_springend_4_3.jpg?w=460&la=ko-KR&h=345&mw=460&bc=333333&hash=44A52C598538ECBEE5EA8F42A1E34FE1)
Jenoptik은 GRYPHAX ® 시리즈 현미경 카메라에 최신 CMOS 기술을 탑재합니다. 짧은 노출 시간 및 고화질 새로 고침 주기 는 시간 절약 및 편리하게 사용할 수 있는 시스템 으로 만들어 줍니다. 이를 통해, 움직이는 물체라도, 빠르고 쉽게 준비하고 초점을 맞출 수 있습니다.
JENOPTIK GRYPHAX® 제품들은 C 탑재 인터페이스로 인해, 브랜드 여하를 막론하고, 모든 현미경에 쉽게 사용할 수 있습니다 . 윈도, 맥 또는 리눅스 의 어떤 운영 체제에서 작업하든 상관 없이 소프트웨어는 항상 동일한 사용자 인터페이스 를 제공합니다.
JENOPTIK GRYPHAX ® 용 소프트웨어 무료 업데이트로 유연성과 항상 최신 상태를 유지할 수 있습니다.
귀하의 현미경 카메라의 유연성과 적용 범위를 증가시키기를 원하십니까? 당사의 JENOPTIK GRYPHAX® 카메라 제품군에 임베디드 DijSDK 를 빠른 시간 내에 요청하십시오.
JENOPTIK GRYPHAX® - Back illuminated color cameras
PROKYON - 주력 모델
Your superior solution for Life & Medical, Material & Manufacturing and fluorescence application.
Display your moving samples with up to 120 frames per second. Capture your samples in real measured color with up to 21 MPix resolution.
Free software with spectacular features like: video tool, panorama tool, EDF tool, remote control, measurement & annotation tool, report tool and more is part of the PROKYON delivery. Optimized workflows an identical user interface on WIN, Linux and MAC OS for efficent work.
Saves your time!
Benefits
- High image quality: With 2 | 9 | 21 MPix, Pixel size 5.86 x 5.86µm, Real measured color, Dynamic range 73 dB, Cooling.
- Versatility: WIN | MAC | LINUX, Free SDK, 3rd party software support, μManager, Twain, DirectX and 3rd party device support for PRIOR stages.
- Ease of use: Free JENOPTIK GRYPHAX® microscope camera software, 1/1.2" Sony back-illuminated sensor, 120 fps at full HD, Global shutter.
- Stability: Made in Germany, 24 month warranty and software updates free of charge.
- Camera properties
⚫⚫⚫⚪ Sensor Size
⚫⚫⚫⚪ Sensitivity
⚫⚫⚫⚫ Frame Rate
⚫⚫⚫⚫ Resolution - Recommended Applications
⚫⚫⚫⚫ Life & Medical Science
⚪⚪⚪⚪ Education Life & Medical Science
⚫⚫⚫⚫ Material & Manufacturing
⚪⚪⚪⚪ Education Material & Manufacturing
⚫⚫⚫⚫ Fluorescence
⚪⚪⚪⚪ Education Fluorescence - Contrast techniques
⚫⚫⚫⚫ BF
⚫⚫⚫⚪ DF
⚫⚫⚪⚪ DIC
⚫⚫⚫⚪ Ph
⚫⚫⚫⚫ Pol
제품 정보
NAOS - 혁신적인 5 & 20 MPix
Your exclusive solution for Life & Medical, Material & Manufacturing application.
Display your specimens with up to 30 frames per second at 5 MPix. Capture your specimens with up to 20 MPix resolution.
Free software with spectacular features like: video tool, panorama tool, EDF tool, remote control, measurement & annotation tool, report tool and more is part of the NAOS delivery. Optimized workflows an identical user interface on WIN, Linux and MAC OS for efficent work.
Saves your time!
Benefits
- High image quality: With 2 | 5 | 20 MPix, aspect ratio 3:2, Reliable colors based on real measured color, Dynamic range 72 dB.
- Versatility: WIN | MAC | LINUX, Free SDK, 3rd party software support, μManager, Twain and DirectX support.
- Ease of use: Free JENOPTIK GRYPHAX® microscope camera software, 1" Sony back-illuminated sensor, 30 fps at 5 MPix.
- Stability: Made in Germany, 24 month warranty and software updates free of charge.
- Camera properties
⚫⚫⚫⚫ Sensor Size
⚫⚫⚪⚪ Sensitivity
⚫⚫⚫⚪ Frame Rate
⚫⚫⚫⚫ Resolution - Recommended Applications
⚫⚫⚫⚫ Life & Medical Science
⚪⚪⚪⚪ Education Life & Medical Science
⚫⚫⚫⚫ Material & Manufacturing
⚪⚪⚪⚪ Education Material & Manufacturing
⚪⚪⚪⚪ Fluorescence
⚪⚪⚪⚪ Education Fluorescence - Contrast techniques
⚫⚫⚫⚫ BF
⚫⚫⚪⚪ DF
⚫⚪⚪⚪ DIC
⚫⚫⚪⚪ Ph
⚫⚫⚫⚪ Pol
Product-Information
ARKTUR - 혁신적인 3 & 8 MPix
Your recomended solution Life & Medical Science, Material & Manufacturing application.
Display 30 frames per second at 4k resolution and the largest possible field of view at the monitor.
Free software with spectacular features like: video tool, panorama tool, EDF tool, remote control, measurement & annotation tool, report tool and more is part of the ARKTUR delivery. Optimized workflows an identical user interface on WIN, Linux and MAC OS for efficent work.
Saves your time!
Benefits
- High image quality: With 2 | 4 | 8 Mpix, 4k, Reliable colors based on real measured color.
- Versatility: WIN | MAC | LINUX, Free SDK, 3rd party software support, μManager, Twain and DirectX support.
- Ease of use: Free JENOPTIK GRYPHAX® microscope camera software, 2/3" Sony back-illuminated sensor, 30 fps at 4k (8 MPix).
- Stability: Made in Germany, 24 month warranty and software updates free of charge.
- Camera properties
⚫⚫⚫⚪ Sensor Size
⚫⚫⚪⚪ Sensitivity
⚫⚫⚫⚪ Frame Rate
⚫⚫⚫⚪ Resolution - Recommended Applications
⚫⚫⚫⚪ Life & Medical Science
⚪⚪⚪⚪ Education Life & Medical Science
⚫⚫⚫⚪ Material & Manufacturing
⚪⚪⚪⚪ Education Material & Manufacturing
⚪⚪⚪⚪ Fluorescence
⚪⚪⚪⚪ Education Fluorescence - Contrast techniques
⚫⚫⚫⚫ BF
⚫⚫⚪⚪ DF
⚫⚪⚪⚪ DIC
⚫⚫⚪⚪ Ph
⚫⚫⚫⚪ Pol
제품 정보
KAPELLA - 낮은 조도 및 명시야에서 착색
Your exclusive solution for live cell and fluorescence application.
Display and capture your moving specimens with up to 120 frames per second.
Free software with spectacular features like: video tool, panorama tool, EDF tool, remote control, measurement & annotation tool, report tool and more is part of the KAPELLA delivery. Optimized workflows an identical user interface on WIN, Linux and MAC OS for efficent work.
Saves your time!
Benefits
- High image quality: With Pixel size 5.86 x 5.86 µm, Reliable colors based on real measured color, Dynamic range 73.3 dB, Cooling.
- Versatility: WIN | MAC | LINUX, Free SDK, 3rd party software support, μManager, Twain and DirectX support.
- Ease of use: Free JENOPTIK GRYPHAX® microscope camera software, 1/1.2" Sony back-illuminated sensor, 120 fps at full HD, Global shutter.
- Stability: Made in Germany, 24 month warranty and software updates free of charge.
- Camera properties
⚫⚫⚫⚪ Sensor Size
⚫⚫⚫⚪ Sensitivity
⚫⚫⚫⚫ Frame Rate
⚫⚪⚪⚪ Resolution - Recommended Applications
⚫⚫⚪⚪ Life & Medical Science
⚪⚪⚪⚪ Education Life & Medical Science
⚫⚫⚪⚪ Material & Manufacturing
⚪⚪⚪⚪ Education Material & Manufacturing
⚫⚫⚫⚫ Fluorescence
⚪⚪⚪⚪ Education Fluorescence - Contrast techniques
⚫⚫⚫⚫ BF
⚫⚫⚫⚪ DF
⚫⚫⚪⚪ DIC
⚫⚫⚫⚪ Ph
⚫⚫⚫⚫ Pol
제품 정보
SUBRA - 풀 HD
Your recomended solution for live cell and fluorescence application.
Display and capture your moving specimens with up to 30 frames per second.
Free software with spectacular features like: video tool, panorama tool, EDF tool, remote control, measurement & annotation tool, report tool and more is part of the SUBRA delivery. Optimized workflows an identical user interface on WIN, Linux and MAC OS for efficent work.
Saves your time!
Benefits
- High image quality: With Pixel size 5.86 x 5.86 µm, Reliable colors based on real measured color, Dynamic range 67 dB.
- Versatility: WIN | MAC | LINUX, Free SDK, 3rd party software support, μManager, Twain and DirectX support.
- Ease of use: Free JENOPTIK GRYPHAX® microscope camera software, 1/1.2" Sony back-illuminated sensor, Global shutter.
- Stability: Made in Germany, 24 month warranty and software updates free of charge.
- Camera properties
⚫⚫⚫⚪ Sensor Size
⚫⚫⚫⚪ Sensitivity
⚫⚫⚫⚪ Frame Rate
⚫⚪⚪⚪ Resolution - Recommended Applications
⚫⚫⚪⚪ Life & Medical Science
⚪⚪⚪⚪ Education Life & Medical Science
⚫⚫⚪⚪ Material & Manufacturing
⚪⚪⚪⚪ Education Material & Manufacturing
⚫⚫⚫⚪ Fluorescence
⚪⚪⚪⚪ Education Fluorescence - Contrast techniques
⚫⚫⚫⚫ BF
⚫⚫⚫⚪ DF
⚫⚫⚪⚪ DIC
⚫⚫⚫⚪ Ph
⚫⚫⚫⚫ Pol
제품 정보
ALTAIR - Cost efficient with 3 & 12 MPix
Product-Information
AVIOR - Cost efficient with 2 & 8 MPix I 4K
Your superior solution for educations.
Basic solution Life & Medical Science, Material & Manufacturing. Display your samples at 4k resolution at the monitor.
Free software with spectacular features like: video tool, panorama tool, EDF tool, remote control, measurement & annotation tool, report tool and more is part of the AVIOR delivery. Optimized workflows an identical user interface on WIN, Linux and MAC OS for efficent work.
Saves your time!
Benefits
- High image quality: With 2 | 8 MPix, 4k, Reliable colors based on real measured color.
- Versatility: WIN | MAC | LINUX, Free SDK, 3rd party software support, μManager, Twain and DirectX support.
- Ease of use: Free JENOPTIK GRYPHAX® microscope camera software.
- Stability: Made in Germany, 24 month warranty and software updates free of charge.
- Camera properties
⚫⚪⚪⚪ Sensor Size
⚫⚪⚪⚪ Sensitivity
⚫⚫⚫⚪ Frame Rate
⚫⚫⚫⚪ Resolution - Recommended Applications
⚪⚪⚪⚪ Life & Medical Science
⚫⚫⚫⚪ Education Life & Medical Science
⚪⚪⚪⚪ Material & Manufacturing
⚫⚫⚫⚪ Education Material & Manufacturing
⚪⚪⚪⚪ Fluorescence
⚪⚪⚪⚪ Education Fluorescence - Contrast techniques
⚫⚫⚫⚫ BF
⚫⚪⚪⚪ DF
⚫⚪⚪⚪ DIC
⚫⚪⚪⚪ Ph
⚫⚪⚪⚪ Pol
Product-Information
JENOPTIK GRYPHAX® - Back illuminated monochrome cameras
POLARIS - The flagship | Monochrome
Your superior solution for fluorescence application.
Capture with the highest possible dynamic range and the most sensetive camera in the entiere portfolio.
Free software with spectacular features like: video tool, panorama tool, EDF tool, remote control, measurement & annotation tool, report tool and more is part of the POLARIS delivery. Optimized workflows an identical user interface on WIN, Linux and MAC OS for efficent work.
Saves your time!
Benefits
- High image quality: With a Pixel size 7.2 x 7.2 µm, Aspect ratio 1:1, Dynamic range 77 dB.
- Versatility: WIN | MAC | LINUX, Free SDK, 3rd party software support, μManager, Twain and DirectX support.
- Ease of use: Free JENOPTIK GRYPHAX® microscope camera software.
- Stability: Made in Germany, 24 month warranty and software updates free of charge.
- Camera properties
⚫⚫⚫⚪ Sensor Size
⚫⚫⚫⚫ Sensitivity
⚫⚫⚪⚪ Frame Rate
⚫⚫⚪⚪ Resolution - Recommended Applications
⚫⚫⚫⚫ Life & Medical Science
⚪⚪⚪⚪ Education Life & Medical Science
⚫⚫⚫⚫ Material & Manufacturing
⚪⚪⚪⚪ Education Material & Manufacturing
⚫⚫⚫⚫ Fluorescence
⚪⚪⚪⚪ Education Fluorescence - Contrast techniques
⚫⚫⚫⚫ BF
⚫⚫⚫⚫ DF
⚫⚫⚫⚪ DIC
⚫⚫⚫⚫ Ph
⚫⚫⚫⚫ Pol
Product-Information
RIGEL - 낮은 조도에서 흑백
Your exclusive solution for monochrome fluorescenceapplication.
Display up to 120 frames per second in low light.
Free software with spectacular features like: video tool, panorama tool, EDF tool, remote control, measurement & annotation tool, report tool and more is part of the RIGEL delivery. Optimized workflows an identical user interface on WIN, Linux and MAC OS for efficent work.
Saves your time!
JENOPTIK GRYPHAX RIGEL is the successor of ProgRes 1.4 MPix CCD monochrome cameras, like MFcool.
Benefits
- High image quality: With Pixel size 5.86 x 5.86 µm, Dynamic range 73 dB, Cooling.
- Versatility: WIN | MAC | LINUX, Free SDK, 3rd party software support, μManager, Twain and DirectX support.
- Ease of use: Free GRYPHAX® microscope camera software,1/1.2" Sony back-illuminated sensor, 120 fps at Full HD, Global shutter.
- Stability: Made in Germany, 24 month warranty and software updates free of charge.
- Camera properties
⚫⚫⚫⚪ Sensor Size
⚫⚫⚫⚪ Sensitivity
⚫⚫⚫⚫ Frame Rate
⚫⚪⚪⚪ Resolution - Recommended Applications
⚫⚫⚪⚪ Life & Medical Science
⚪⚪⚪⚪ Education Life & Medical Science
⚫⚫⚪⚪ Material & Manufacturing
⚪⚪⚪⚪ Education Material & Manufacturing
⚫⚫⚫⚫ Fluorescence
⚪⚪⚪⚪ Education Fluorescence - Contrast techniques
⚫⚫⚫⚫ BF
⚫⚫⚫⚫ DF
⚫⚫⚫⚪ DIC
⚫⚫⚫⚫ Ph
⚫⚫⚫⚫ Pol
제품 정보
WEGA - Full HD solution | Monochrome
Your advanced solution for monochrome fluorescence application.
Display up to 30 frames per second in low light.
Free software with spectacular features like: video tool, panorama tool, EDF tool, remote control, measurement & annotation tool, report tool and more is part of the WEGA delivery. Optimized workflows an identical user interface on WIN, Linux and MAC OS for efficent work.
Saves your time!
Benefits
- High image quality: With Pixel size 5.86 x 5.86 µm, Dynamic range 69 dB.
- Versatility: WIN | MAC | LINUX, Free SDK, 3rd party software support, μManager, Twain and DirectX support.
- Ease of use: Free GRYPHAX® microscope camera software,1/1.2" Sony back-illuminated sensor, Global shutter.
- Stability: Made in Germany, 24 month warranty and software updates free of charge.
- Camera properties
⚫⚫⚫⚪ Sensor Size
⚫⚫⚫⚪ Sensitivity
⚫⚫⚫⚪ Frame Rate
⚫⚪⚪⚪ Resolution - Recommended Applications
⚫⚫⚪⚪ Life & Medical Science
⚪⚪⚪⚪ Education Life & Medical Science
⚫⚫⚪⚪ Material & Manufacturing
⚪⚪⚪⚪ Education Material & Manufacturing
⚫⚫⚫⚪ Fluorescence
⚪⚪⚪⚪ Education Fluorescence - Contrast techniques
⚫⚫⚫⚫ BF
⚫⚫⚫⚪ DF
⚫⚫⚪⚪ DIC
⚫⚫⚫⚪ Ph
⚫⚫⚫⚫ Pol
Product-Information
BETRIA - Cost efficient | Monochrome
Your superior education solution for fluorescence application.
Free software with spectacular features like: video tool, panorama tool, EDF tool, remote control, measurement & annotation tool, report tool and more is part of the BETRIA delivery. Optimized workflows an identical user interface on WIN, Linux and MAC OS for efficent work.
Saves your time!
Benefits
- High image quality: With Aspect ratio 4:3, Dynamic range 65 dB.
- Versatility: WIN | MAC | LINUX, Free SDK, 3rd party software support, μManager, Twain and DirectX support.
- Ease of use: Free GRYPHAX® microscope camera software.
- Stability: Made in Germany, 24 month warranty and software updates free of charge.
- Camera properties
⚫⚪⚪⚪ Sensor Size
⚫⚫⚪⚪ Sensitivity
⚫⚫⚪⚪ Frame Rate
⚫⚫⚪⚪ Resolution - Recommended Applications
⚪⚪⚪⚪ Life & Medical Science
⚫⚫⚪⚪ Education Life & Medical Science
⚪⚪⚪⚪ Material & Manufacturing
⚫⚫⚪⚪ Education Material & Manufacturing
⚪⚪⚪⚪ Fluorescence
⚫⚫⚫⚫ Education Fluorescence - Contrast techniques
⚫⚫⚫⚫ BF
⚫⚫⚫⚪ DF
⚫⚪⚪⚪ DIC
⚫⚫⚫⚪ Ph
⚫⚫⚫⚪ Pol
Product-Information
JENOPTIK GRYPHAX® - Software, tutorial, documentation & application
Software benefits & Features
Remarkable benefits of JENOPTIK GRYPHAX® at a glance
What makes your daily work efficient? Time saving and ease of use workflows with premium quality products made in Germany.
JENOPTIK GRYPHAX® software is workflow optimized ease to use and offers the relevant microscopy features. For those who want to enjoy flexibility, and more functionality drivers like TWAIN, DirectX®, open source microscopy software like µmanager and others are available.
![jenoptik gryphax software and microscope camera](/-/media/websiteimages/optics/di/software-jenoptik-gryphax-microscope_camera_workstation_4_3.jpg?w=460&la=ko-KR&h=345&mw=460&bc=333333&hash=1A1E08885CA9836271DC9F3A3C2F8D8F)
- Ease of use
- Automatic, fast exposure control
- Live-image optimized: ocular view - adapt color impressions from ocular to the images
- Image comparison (side by side)
- Video recording - High image quality
- Jenoptik color interpolation based on real measured color
- Measured data based on EMVA 1288 guidelines
- Real time image enhancements @ live - Stability
- Device configuration - to define multiple microscope settings
- User profile for excellent, reproducible image results
- Software and updates free of charge
- Each release is certified tested - Versatility
- Research life with fluorescence tool
- Examine elements with panorama & z-stacking tool
- Evaluate quality with measurement tool
- Reveal truths with true color know-how
JENOPTIK GRYPHAX® software features
- Ease of use
- Exposure tool
- Time-lapse mode
- Video mode
- Image analysis function
- Measurement & annotation tool
- Monochrome mode
- Camera server tool - High image quality
- Histogram tool
- FX tool
- Color tool - Stability
- User profiles function - Versatility
- Panorama tool
- Z-Stacking tool
- Multi-Fluorescence tool
- High speed & Slow motion Video tool
소프트웨어-다운로드
등록된 사용자들은 현재 버전 및 최신 버전을 무료로 다운로드 할 수 있습니다.
PROGRES GRYPHAX® 일반적인 소개
What makes your daily work efficient?
Time saving and ease of use workflows with premium quality products made in Germany.
The guideline for your quick start with your JENOPTIK GRYPHAX® microscope camera below.
Timesaving!
제품 정보
JENOPTIK GRYPHAX® cameras are predestined for your application in
- Life & medical science
- Pathology
- Cell biology
- Oncology
- Neuroscience
- Entomology
- Plant Biology
- Dentistry
- Fluorescence
- Cell culture
- Ophthalmology
- and more… - Material science
- Geology & environmental science
- Sample preparation
- Art conservation and natural resource science
- and more… - Industry & manufacturing
- Medical device production
- Automotive & transportation
- Quality control
- Metals & machine engineering
- Watch making industry
- Semiconductor & microelectronics
- Manufacturing
- and more… - Education
- Life science
- Earth science
- Material science Forensic
They capture confident and reliable your daily work with real measured colors.
Confident!
마이크로 유니버스™를 탐험하세요.
장점
- 고화질: 전문적인 Jenoptik의 화질은 스펙트럼으로 측정된 센서를 사용하여, 트루 컬러 노하우 및 완벽한 색상 재현에 기반합니다.
- 다용도: 윈도, 맥 및 리눅스와 교차 플랫폼 호환, 윈도, 맥 및 리눅스 플랫폼에서 동일한 GUI, 모든 현미경 브랜드에 적합, 무료 SDK 사용 가능 및 제 3 사 소프트웨어 지원.
- 손쉬운 사용: 사용자 친화적이고 직관적인 현미경 카메라 소프트웨어, 최적화된 워크플로, 라이브 이미지 최적화 된 기능 - 항상 모든 기능의 실시간 작동, 시간 절약 및 간편한 설치에 완벽한 현미경용 센서.
- 안정성: USB 3.0 카메라 인터페이스, 안전한 투자: 장기적이고 신뢰할 수 있는 하드웨어, 장기적인 소프트웨어 지원 및 운영 체제 호환성.
사용 분야
- 생명 과학: 의학, 병리학, 혈액학, 세포학, 유전학, 생물학 및 화학
- 품질 관리: 곡물 분석, 용접 이음 시험 및 제조 공정 제어
- 소재 과학: 광물학 및 금속 조직학용 현미경 카메라 - 구조 결정, 정량 및 정성 샘플 분석 및 문서화 용도
- 법의학: 증거 확보, 서류 심사 및 법의학
Software options
for image analysis with JENOPTIK GRYPHAX® cameras in industry & science
find out more
GRYPHAX® cameras for micro photography
GRYPHAX combines brilliant vision, a huge wingspan, dynamic maneuverability, bounce and surefootedness.
find out more
FAQ - JENOPTIK GRYPHAX®
for JENOPTIK GRYPHAX® software and camera
find out more
Do you have any questions? Please contact us for advice.
![Contact](/-/media/images/defaults/contacts.jpeg?impolicy=aoiv1&width=400&height=300)
![Stefan Seidlein](/-/media/websiteimages/people/contact-aps/kontakt_stefan seidlein.jpg?impolicy=aoiv1&width=400&height=300)
