CoastalOpt® 투영 대물 렌즈: 엔터테인먼트 산업용 독특한 투영
Jenoptik은 세계 최대의 테마파크에서 환상적인 공연을 위한 주문형 2D 및 3D 투영 대물 렌즈를 설계하고 제작합니다.
Jenoptik의 고객으로 유명한 월트 디즈니 월드 리조트뿐만 아니라 전 세계의 여러 레저 공원이 있습니다. 예를 들어, 당사는 미국, 대만, 아랍에미레이트, 일본 및 중국에서도 프로젝트를 진행하고 있스니다. 당사의 전문가들은 쇼 또는 3D 프로덕션을 위한 독특한 투영 대물 렌즈를 개발하고 있습니다.
장점
- 세계적임: 전세계의 여러 테마파크에서 사용 중임
- 주문형: 귀하의 요구 사항에 맞게 개별적으로 제작 가능함
- 다목적: 당사는 디지털 고객 데스크탑부터 영화관 프로젝터에 이르기까지 다양한 응용 분야에 맞는 대물 렌즈를 생산하고 있습니다.
응용 분야
- 엔터테인먼트 산업: 3D 영화관 및 시뮬레이터용 광각 대물 렌즈
JENOPTIK - World Class Entertainment - projection lens systems

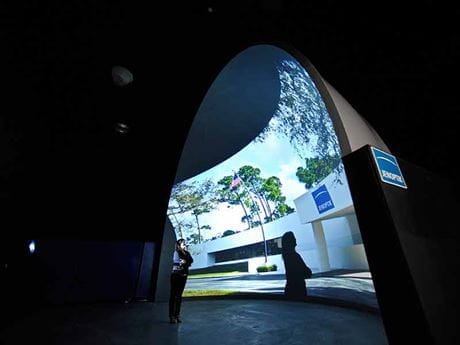

Jenoptik Dome Theater
In-house testing and demonstration of Jenoptik projection lenses
The Jenoptik Dome Theater enables testing and demonstrating new laser projection lenses for digital cinemas, planetariums and theme park attractions in-house at Jenoptik site.
The screen is 24 feet in diameter with 12 feet dome radius. The hemispherical screen is elevated five feet abovethe audience which is perfect for testing digital planetarium lenses. The screen is coated with a proprietary high performance surface treatment to match our customer’s preferred 3D projection screens.
The Jenoptik Theater also has a 30 x 16 feet flat sceen for testing digital cinema lenses especially produced for flat sceens.
Projection Lenses - Suitable for following projectors
Suitable for following projectors:
- Christie D4KLH60
- Christie D4K3560
- Christie Roadie HD+35K
- Christie Boxer 4K30
- Christie Mirage 304K
- Barco DP4K-32B
- Barco HDQ-4K35
- DP INSIGHT 4K Quad
- DP Insight Laser 4K
- DP Insight Dual Laser 4K
기술 데이터

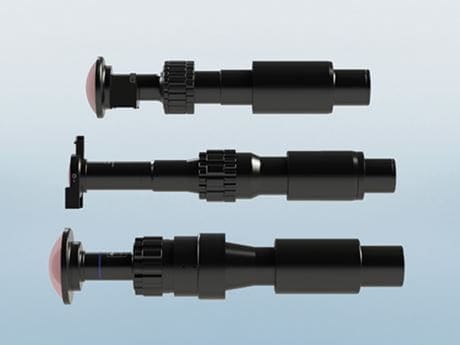

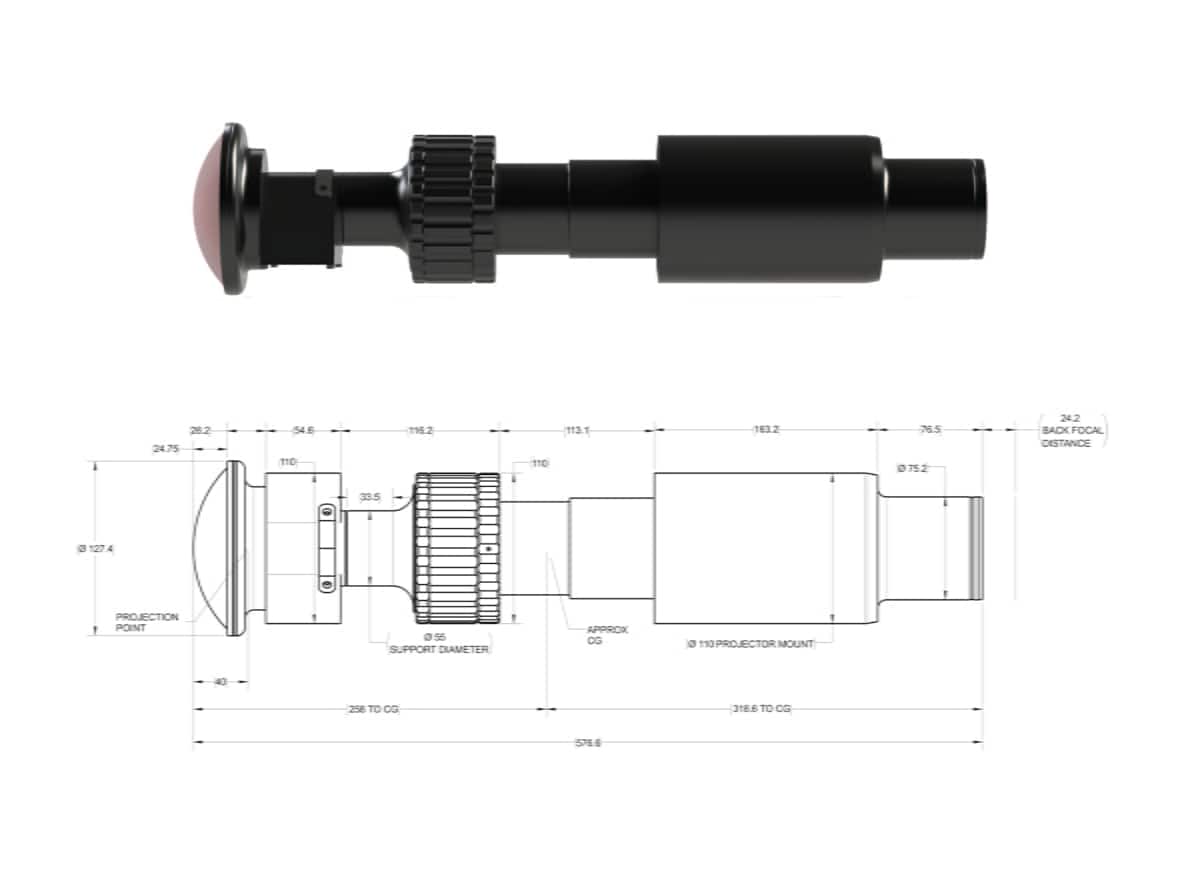

F-Theta High Power Projection Lenses
Planetarium and Giant Screen Solutions | JOS4K-1
| Parameters | |
| Horizontal field of view: | 180° |
| Vertical field of view: | 125° |
| Diagonal field of view: | - |
| Effective focal length: | 7.5 mm |
| f#: | 2.85 |
| MTF @ 66 lp/mm: | 0.68 |
| Lateral color B-R: | < 3.5 µm |
| F-Theta distortion: | < 0.2 % |
| Transmission: | > 77 % |
| Digital light procession (DLP): | 1.38“ 3 Chip |
| Resolution: | 4096 x 2160 pixel |
| DLP dimension: | 30.96 mm x 16.33 mm |
| Pixel pitch: | 7.56 µm |
| Max lumens: | 32 k |
| Order Number: | JOS4K-1 |

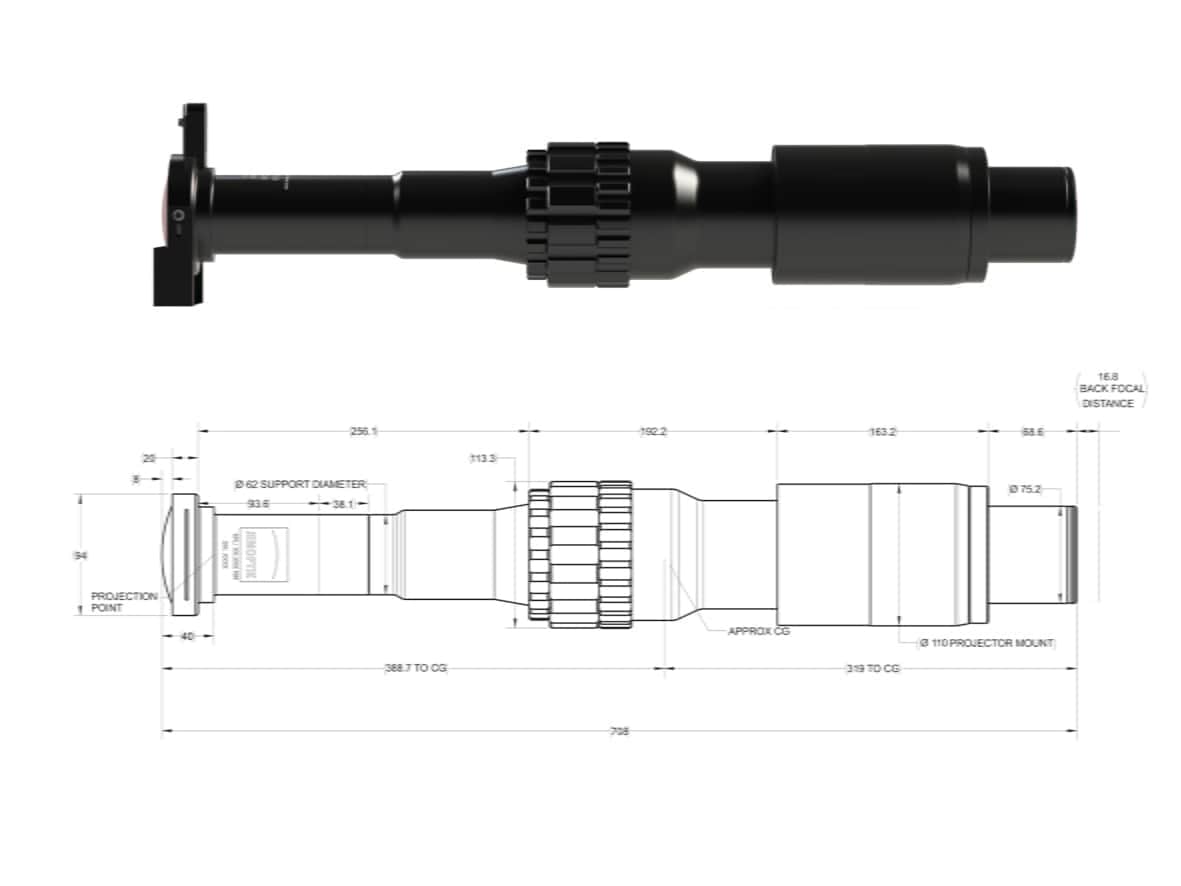

JOS4K-2 - Technical Data
F-Theta High Power Projection Lenses
Planetarium and Giant Screen Solutions | JOS4K-2
| Parameters | |
| Horizontal field of view: | 101° |
| Vertical field of view: | 53° |
| Diagonal field of view: | 114° |
| Effective focal length: | 17.5 mm |
| f#: | 2.85 |
| MTF @ 66 lp/mm: | 0.78 |
| Lateral color B-R: | < 1 µm |
| F-Theta distortion: | < 0.8 % |
| Transmission: | > 77 % |
| Digital light procession (DLP): | 1.38“ 3 Chip |
| Resolution: | 4096 x 2160 pixel |
| DLP dimension: | 30.96 mm x 16.33 mm |
| Pixel pitch: | 7.56 µm |
| Max lumens: | 45 k |
| Order Number: | JOS4K-2 |

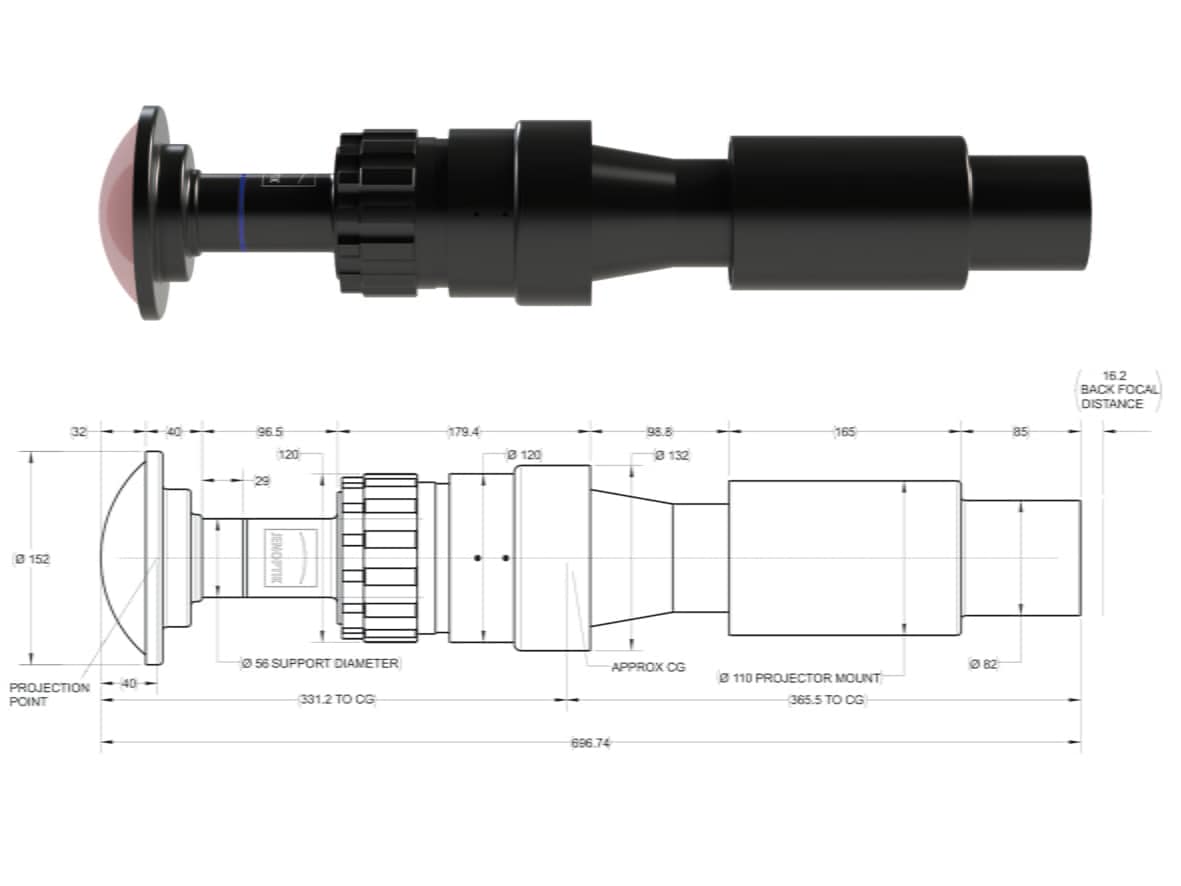

JOS4K-4 - Technical Data
F-Theta High Power Projection Lenses
Planetarium and Giant Screen Solutions | JOS4K-4
| Parameters | |
| Horizontal field of view: | 170° |
| Vertical field of view: | 90° |
| Diagonal field of view: | 192° |
| Effective focal length: | 10.35 mm |
| f#: | 2.85 |
| MTF @ 66 lp/mm: | 0.55 |
| Lateral color B-R: | < 3.5 µm |
| F-Theta distortion: | < 1 % |
| Transmission: | > 85 % |
| Digital light procession (DLP): | 1.38“ 3 Chip |
| Resolution: | 4096 x 2160 pixel |
| DLP dimension: | 30.96 mm x 16.33 mm |
| Pixel pitch: | 7.56 µm |
| Max lumens: | 60k |
| Order Number: | JOS4K-4 |

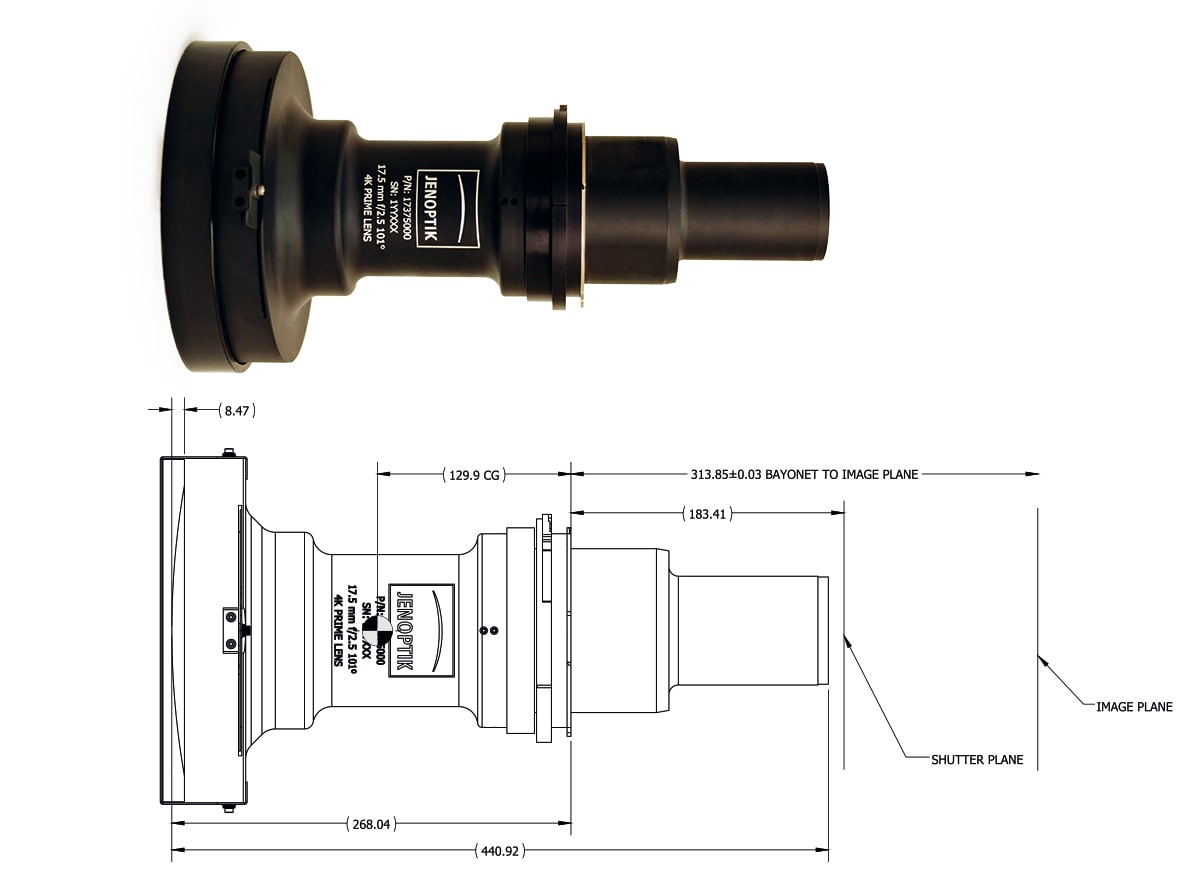

JOS4K-5 - Technical Data
F-Theta High Power Projection Lenses
Planetarium and Giant Screen Solutions | JOS4K-5
| Parameters | |
| Horizontal field of view: | 101° |
| Vertical field of view: | 53° |
| Diagonal field of view: | 114° |
| Effective focal length: | 17.54 mm |
| f#: | 2.5 |
| MTF @ 66 lp/mm: | 0.8 |
| Lateral color B-R: | < 5.0 µm |
| F-Theta distortion: | < 0.6 % |
| Transmission: | 80 % |
| Digital light procession (DLP): | 1.38“ 3 Chip |
| Resolution: | 4096 x 2160 pixel |
| DLP dimension: | 30.96 mm x 16.33 mm |
| Pixel pitch: | 7.56 µm |
| Max lumens: | 45k |
| Order Number: | JOS4K-5 |

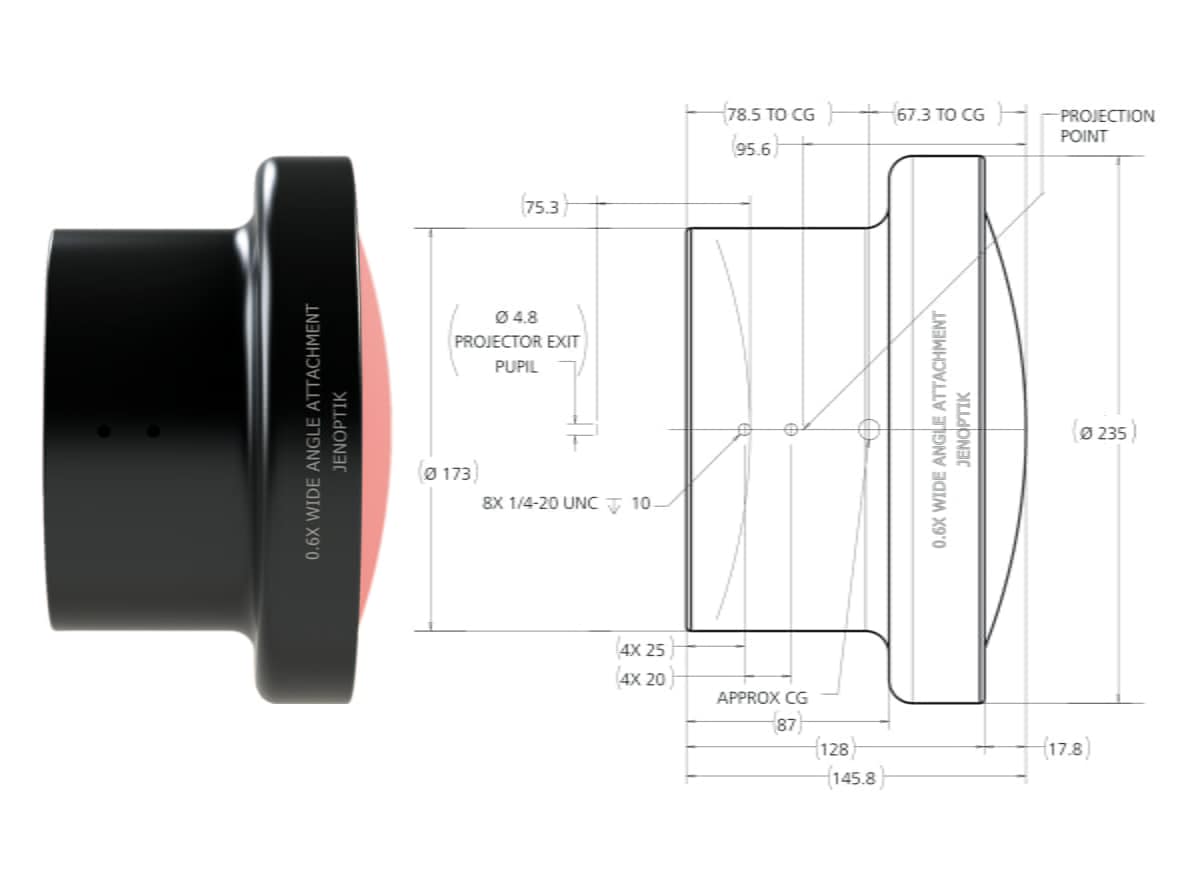

0.6x Lens Attachment - Technical Datas
0.6x Lens Attachment
Wide Angle Conversion Lens
Jenoptik’s portfolio of projection lenses is complemented by the 0.6x lens attachment. The wide angle conversion lens which is optionally offered works in conjunction with the projector prime lens.
It allows to increase the image size while maintaining a static projection distance. Reverse, it also facilitates to decrease projection throw distance while maintaining the image size.
Suitable for following projector: SONY VPL-GTZ 270/280 w/Lens VPLL-Z7008 (EFL 13.46 mm - 18 mm)
| Parameters | |
| Effective focal length: | - 2201 mm |
| MTF @ 66 lp/mm: | Depends on zoom postion of prime lens |
| Transmission: | > 92 % |
| Magnification | 0.6x |
| Order Number: | JOSI4K-5CL |
